Product Description

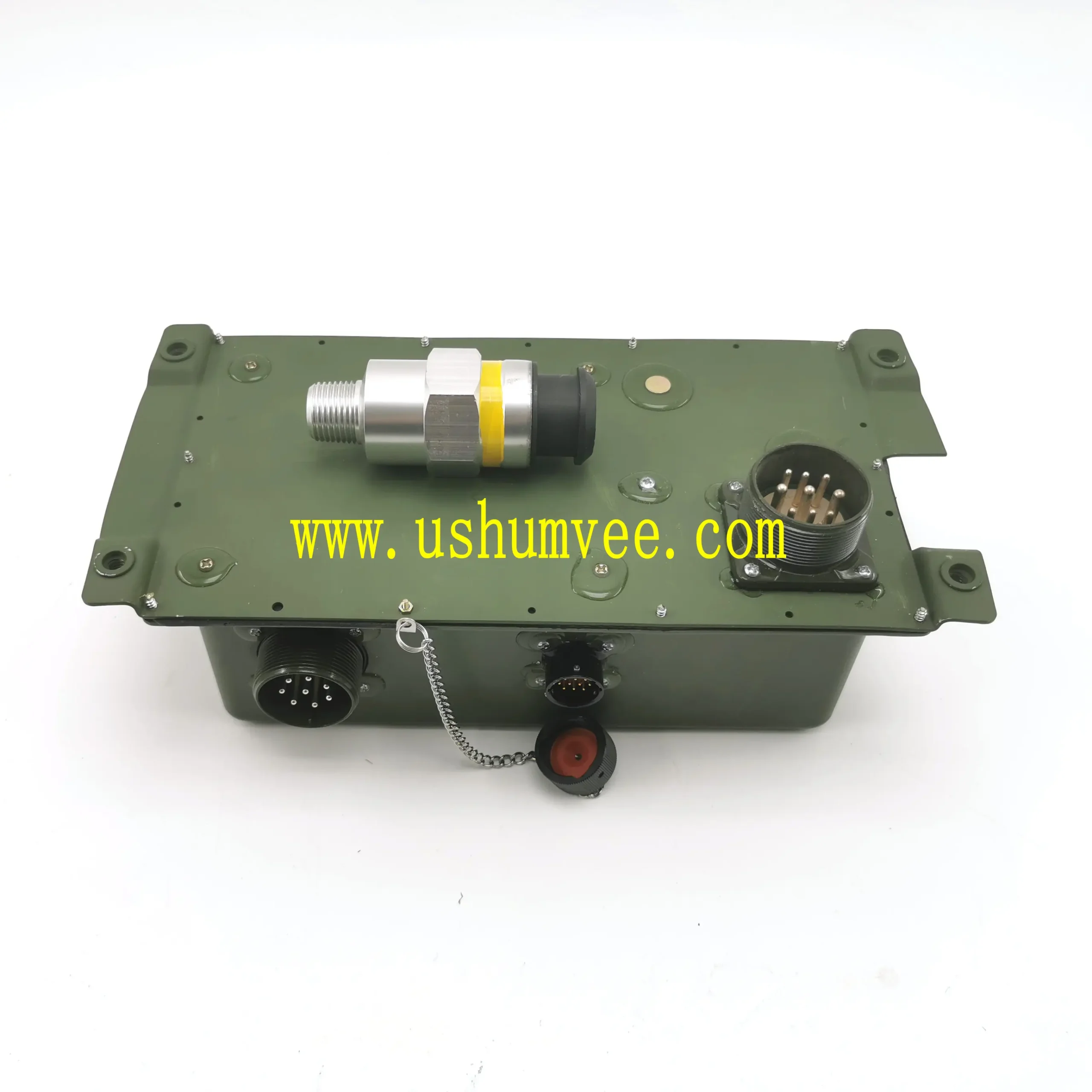

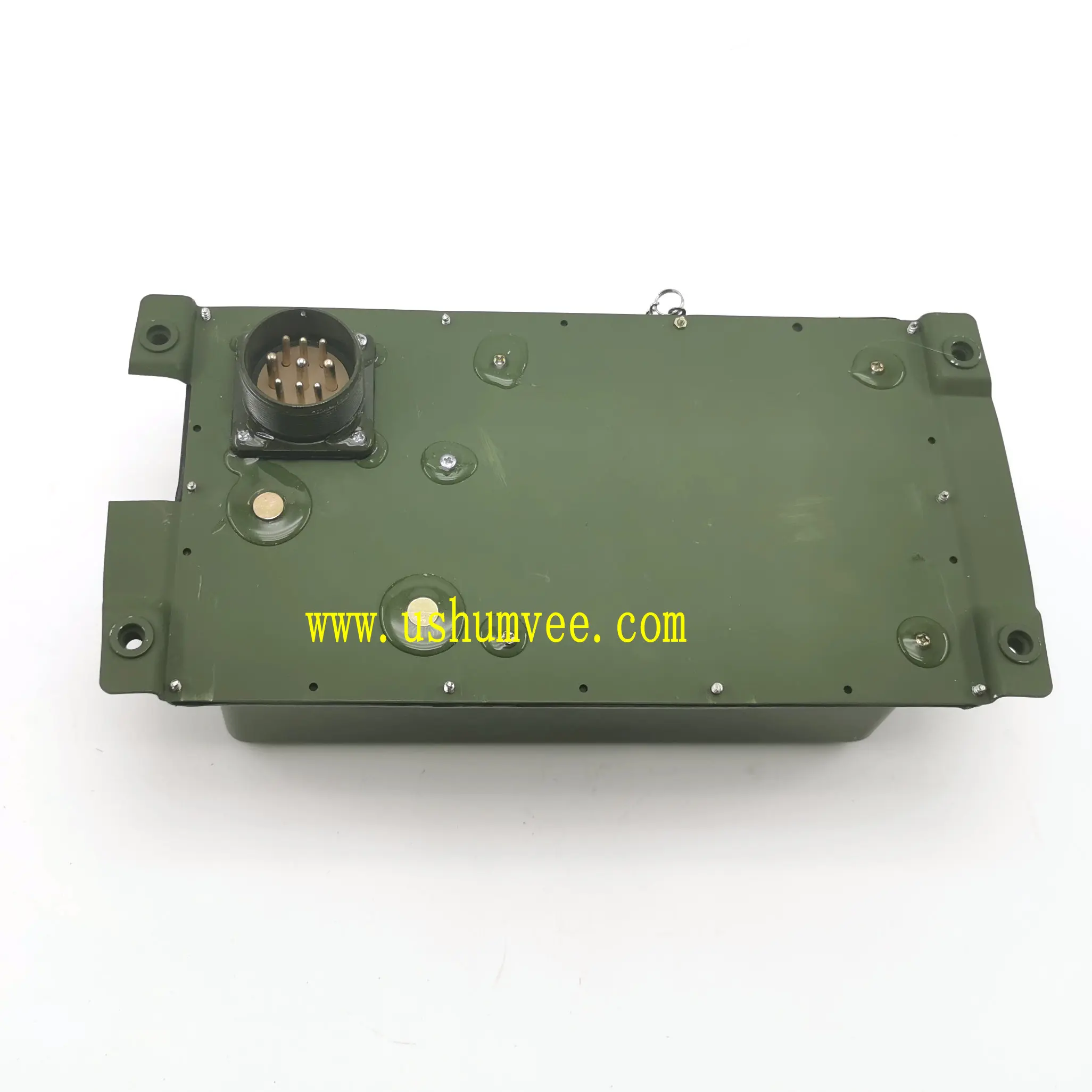

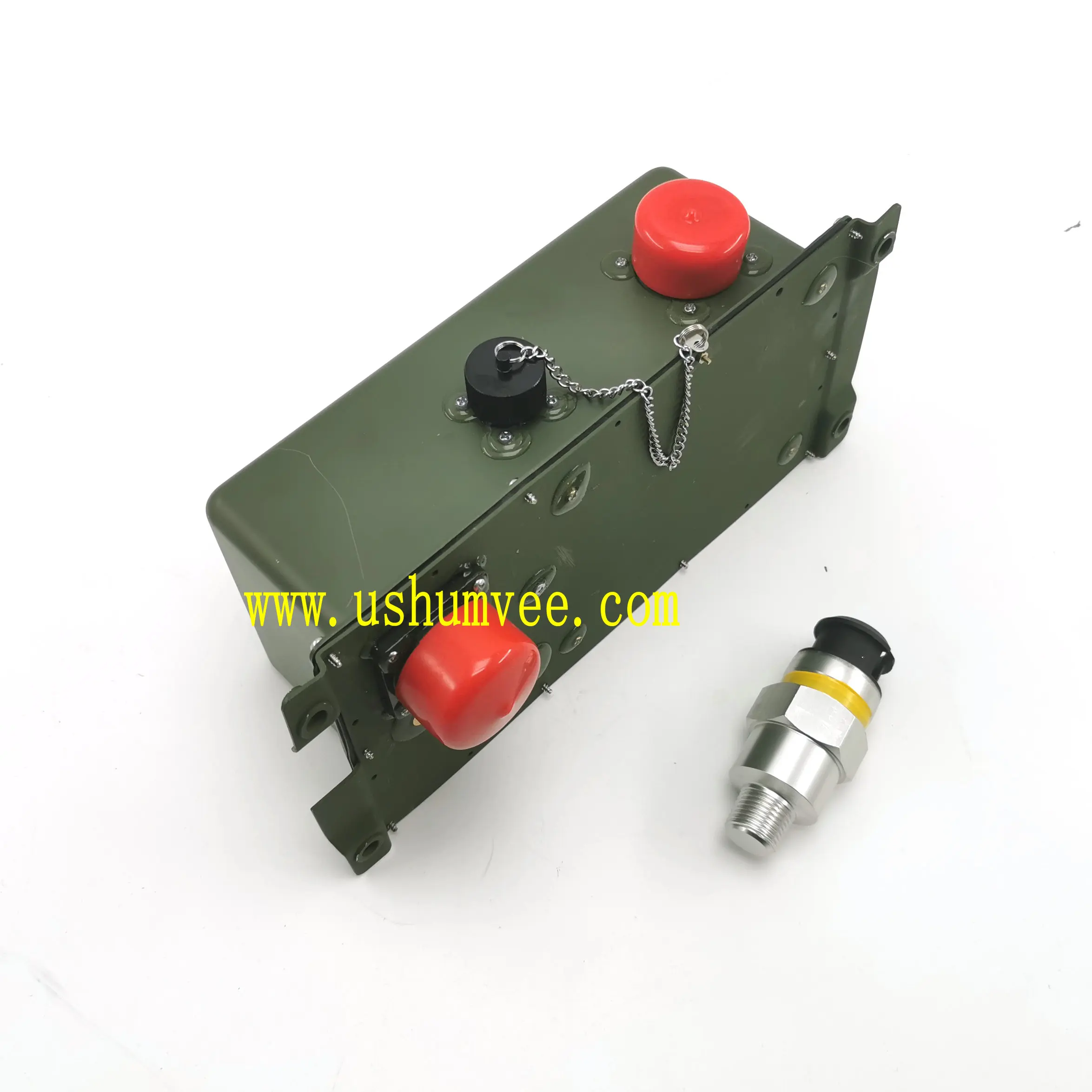

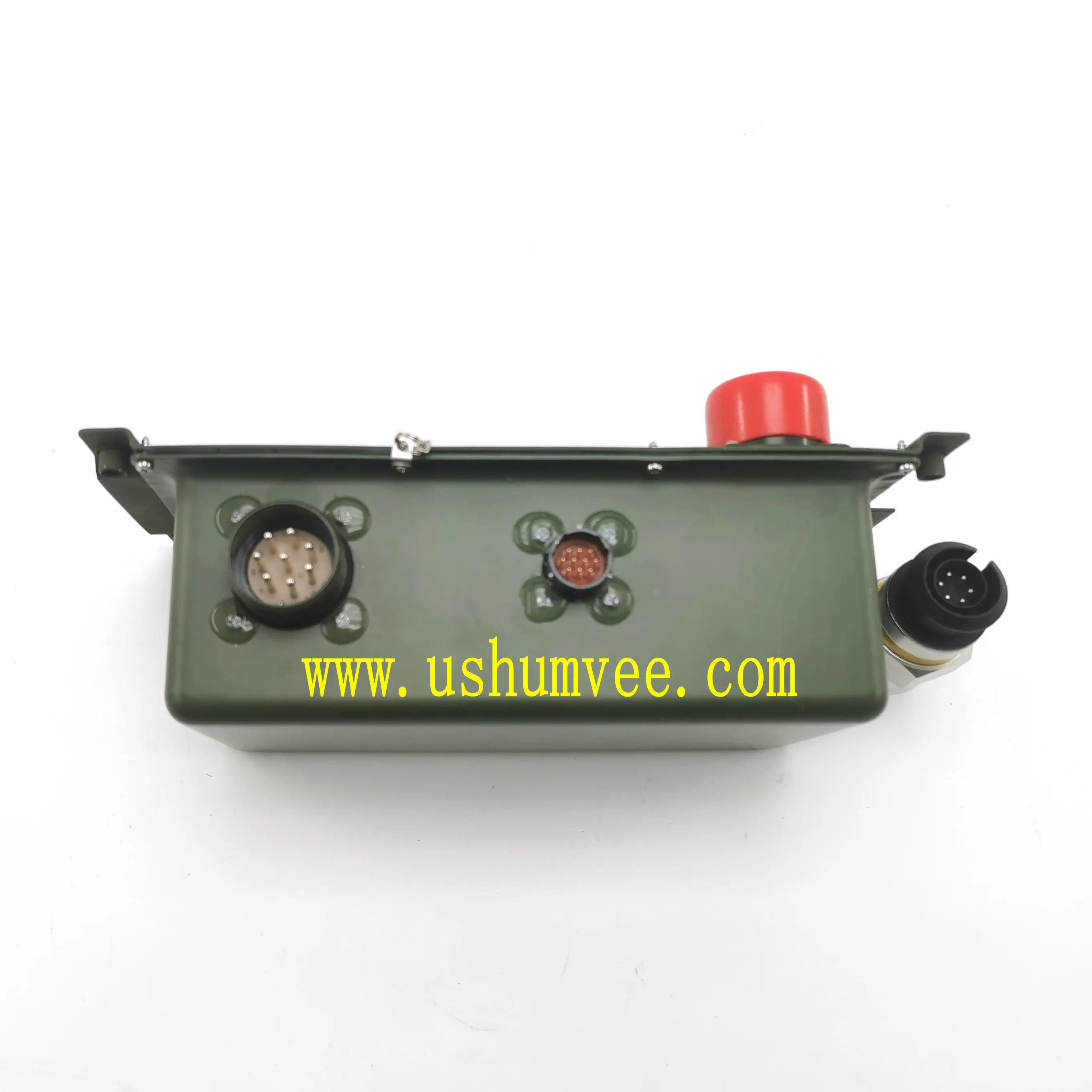

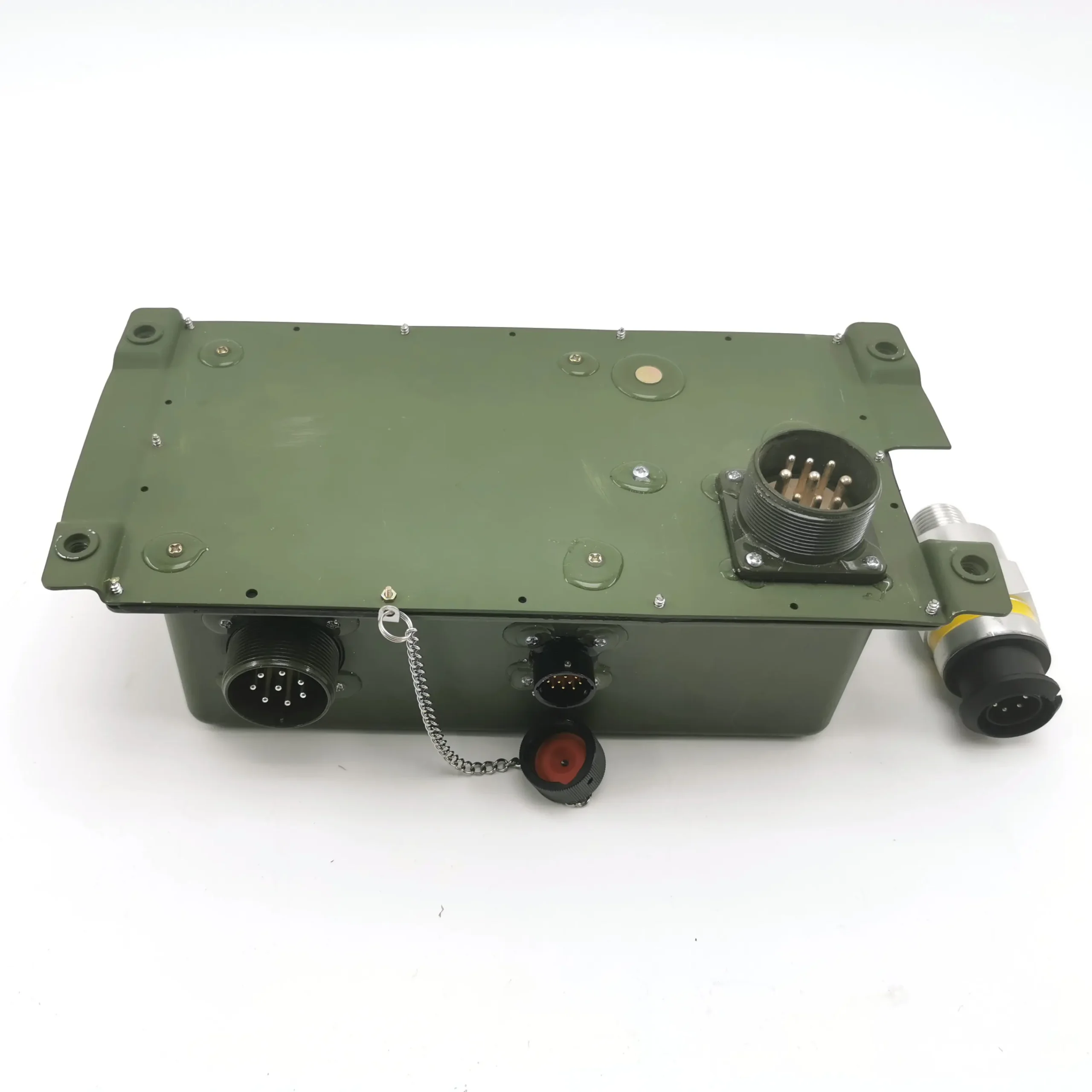

Humvee Smart Glow Plug Controller Protective Box
P/N 12446779. NSN 6110-01-395-9585. EESS (Engine Electrical Start System) control box.

Do not mix EESS Prestolite/Nartron/KDS units with later model KDS Smart Start or Narton Smart Start temperature control units on same vehicle. This control box must be used with our matched Temperature Control Unit(TSU) NSN 2920-01-175-7214.

Disconnect batteries before installing the control box. Failure to disconnect batteries before installing or removing control box connectors will damage the control box.

It is highly recommended to check the glow plugs before installing a new control box. Defective glow plugs may damage the control box. The glow plug system will draw approximately 100 amps. The vehicle batteries must be in good condition for the preheat and start system to function. If the batteries cannot crank the engine they won’t operate the glow plugs.

Only the 60 amp alternators can power directly through the control box. Basic and A1 vehicles upgraded to 100. 200. and 400 amp alternators must have the alternator wiring harness modification in place (done when the alternator is installed) so the alternators output does not go through the control box. Vehicles factory equipped with 100. 200. and 400 amp alternators have the battery direct wiring factory installed.

Please be aware that this item does not accept returns on this item. because we can’t sure the causes are result from our control box. Therefore. it is important to ensure proper installation and troubleshoot any issues by checking grounds. TSU connection.faulty wiring. and other potential causes.

Please be aware even NARTRON/KDS systerm has such problem. need the expert/technician to check further. It is crucial to follow certain instructions when installing the control box. It has a lot to do with operation and vehicle condition. so
Non-professionals are advised not to disassemble or assemble the product by yourself. Our store will not be responsible for any consequences arising therefrom.

Specification

item	HMMWV/Humvee Smart Glow Plug Controller Protective Box EESS 6110-01-395-9585 12446779
OE NO.	6110-01-395-9585
Engine Code	12446779
Voltage	DC 24V
Warranty	1Year
Place of Origin	China
	Zhejiang
Condition	New
Type	Glow Plug Controller
Purpose	for replace/repair
Brand Name	LANNY&M
Car Model	HUMMER Closed Off-Road Vehicle
Quality	OEM Standard
Packing	Brand Packing
Delivery Time	In Stacks 3-5days
Certification	ISO9001/TS16949

We focus on non-civilian vehicle and truck parts for 15years. Main vehicle parts as follow: 1.HMMWV. Humvee. Hummer H1. M998/M113 etc. 2.M series trucks. M35/M54/M809/M939 etc. 3.WILLYS JEEP and trucks. MB/M38/M38A1/M151 etc. 4.Defender 90/110 etc.5.CUMMINS engine NHC250.NT855.6CT8.3 etc.

HMMWV HUMVEE More Parts
NO	NSN Number	Part Number	NO	NSN Number	Part Number
1	5945-01-210-1299	5741115	106	2520-01-168-7878	5740013
2	2920-01-505-2007	MBD2566	107	3020-01-358-8601	5938664
3	2530-01-554-8340	6030626	108	2520-01-174-5849	5593817
4	2920-01-175-7214	12338772	109	530-01-457-1337	5714538
5	2920-01-469-6903	12469158-2	110	2530-01-554-8307	12506981-1 12342645
6	6110-01-395-9585	12446779	111	2540-00-737-3304	7975607
7	2530-01-357-9776	12342898	112	2540-00-797-5609	7975609
8	2530-01-179-7590	2771302	113	2540-00-741-0715	7410715
9	2540-01-314-1190	12342130	114	2950-00-148-7985	10935279
10	6220-00-880-1624	11614156	115	4330-01-398-8484	5715388
11	6220-01-372-3883	12375837	116	2520-01-398-4589	2815NR0391
12	4140-01-211-8403	4735-83449-02	117	4330-01-121-6350	12337210
13	2930-01-190-3555	12339496	118	2930-01-353-5794	12553484
14	2930-01-420-8622	12460252	119	2520-00-722-7074	5595707
15	2530-01-420-7893	RCSK-17089-2	120	5330-01-174-8146	5579448
16	2530-01-460-2439	12339495 RCSK18330	121	5330-01-025-4212	5740339
17	2930-01-405-9885	12446985	122	5330-01-413-3713	5714224
18	2930-01-199-2398	12339138	123	5330-01-174-8145	6009472
19	6220-01-094-1440	11668932	124	4330-01-506-2918	5716372
20	2815-01-148-9533	23501992 12564564	125	2940-01-548-1183	12342870
21	2815-01-314-6887	10137454	126	2940-01-188-3776	5582696
22	2530-01-422-9390	12506981	127	4330-01-190-3579	5589161
23	3040-01-422-9390	12342645	128	2530-01-554-8336	6030627 12480554-2
24	2530-01-189-2195	12338311	129	5330-01-168-3870	5740017
25	2530-01-566-1485	12507024	130	5330-01-203-6551	12342961
26	2510-01-205-6089	12338312.	131	5306-00-097-9701	12339050
27	2530-01-421-2563	6005119	132	5340-01-185-8821	12338896
28	2815-01-411-3964	5743227	133	5330-01-200-0466	12338339
29	5330-01-249-1629	23500139	134	2930-01-358-8693	12514574
30	2530-01-554-8309	12460352	135	2930-01-256-5350	12340061
31	2815-01-148-3771	5740037	136	2530-01-554-8315	12460354
32	2920-01-187-1310	11871310 5740926	137	4140-01-211-8403	4735-83449-02
33	2815-01-411-2137	10163726	138	6220-00-880-1625	11614157
34	2815-01-412-8161	5743282	139	6220-01-094-1440	11668932
35	2530-01-554-8270 2530-01-420-8634	6030629 12480554-1	140	2540-01-431-1338	57K3222
36	2930-01-199-2398	12339138	141	5935-00-462-6603	MS27142-2
37	2930-01-168-7911	12340185	142	2540-01-185-9530	12338909
38	5342-01-246-1120	12340185	143	6620-01-194-6586	5569626
39	2815-01-512-2230	12567769	144	5940-00-549-6583	MS75004-2
40	2990-27-055-3123		145	6150-01-470-2011	5714928
41	5360-01-179-4107	12338316-1	146	2530-01-423-1796	12460232
42	2530-01-567-0893	6034965	147	2910-00-152-2033	12356666
43	2530-01-420-7904	6002218	148	2910-00-790-8736	14648300
44	2530-01-333-8263	12173601-1	149	6620-00-814-4770	MS24538-1
45	4730-01-184-6971	12339235	150	2910-00-790-2300	8729068
46	3120-01-152-4239	12531701	151	2530-01-188-3684	12338328
47	2815-01-412-6760	12510753	152	2530-01-413-1366	12460149
48	2530-01-420-8634	12480554-1	153	2530-01-554-8288	12506982
49	2815-01-150-2198	14025523 5740038	154	2530-01-188-3685	12338325
50	2815-00-175-9636	10935239	155	2930-01-168-7870	5579411
51	2815-00-148-7984	5704480	156	5930-00-207-9422	11663279
52	2815-00-134-0077	5702644	157	2590-00-683-0598	MS51074-1
53	2815-00-860-5419	57K1318	158	6620-00-993-5546	6009472
54	2815-00-074-8915		159	2530-01-554-8340	6030626
55	2815-00-078-6632		160	3020-01-442-7485	12460262
56	2815-00-118-5270	5702767	161	3020-01-444-2311	RCSK18686
57	5342-01-189-9982	12339179	162	3020-01-188-3884	12339394
58	3130-01-203-9870	5741082	163	3030-01-488-5606	12469149-3
59	5342-01-190-7735	12339178	164	2530-01-566-6740	5717265
60	2530-01-420-7893	RCSK-17089-2	165	2530-01-461-4732	12469425
61	6220-01-359-2870	12375841	166	2530-01-484-9573	5745454
62	6220-01-408-7785	12447083	167	2530-01-565-9660	6040401
63	5945-00-789-3706	11613631	168	2530-01-455-9330	57K3512 5744403
64	5930-00-307-8856	MS51113-1	169	2950-01-439-8169	12532429
65	6110-01-292-6532	12339517	170	2520-01-174-9554	5938685
66	6685-01-146-8006	14077122	171	4720-01-187-3386	12339162
67	2530-01-414-7844	12460167	172	4720-01-188-1370	12339159
68	5330-01-189-9738	12338342	173	2990-01-446-5359	3802257 3802127 / 3802154
69	5945-01-193-7175	12338603	174	2530-00-134-5122	8757682
70	2540-01-410-8789	12460230	175	5306-00-206-6339	10896719-1
71	6680-01-185-1264	12339199	176	6620-00-993-5546	MS24539-1
72	5745423	5745423	177	2940-00-134-4657	11604545
73	2530-01-554-4731	6500522	178	2530-01-433-3009
74	2530-01-491-2681	12469485	179	2530-01-188-3685	12460149-1
75	2510-01-251-5316	12340072	180	2530-01-197-2160	12338311-1
76	2530-01-420-5180	12460468	181	2530-27-058-4474	12338314
77	2530-01-179-7511	5579865	182	2530-01-566-7801	12507025
78	2520-01-416-5217	RCSK17305	183	2930-01-405-9885	12446985
79	3110-01-027-4475	5568226	184	2930-01-448-9439	6050290
80	2530-01-554-8340	6030626	185	2910-00-148-1612	10947344
81	2640-01-419-6205	570K0297	186	6220-01-094-1440	11668932
82	5331-01-417-1043	12460338	187	4330-01-189-0889	5741059
83	5340-01-186-7658	12338888	188	2530-01-565-7606	6035075
84	3120-01-186-5527	12338270	189	2540-01-422-0253	12340660
85	2530-01-252-8362	12340015	190	4710-01-412-1668	5742550
86	2530-01-420-3839	12460467	191	2530-01-593-5606
87	2530-01-249-1577	12340016	192	5930-01-183-6637	12338596
88	2520-01-175-7215		193	2530-01-420-7210
89	2540-01-212-5814	1233889	194	5945-01-188-3194	5740668
90	2530-01-484-9573	5745454	195	2530-01-185-3879	5578809
91	5330-01-358-9532	16623	196	2530-01-179-7589	2232134
92	2610-01-333-7632	12342644	197	2530-01-357-9708	12342899
93	2590-01-212-4955	12339219	198	6220-01-418-4404	12446845-1
94	4720-01-213-1574	12338956	199	6220-01-443-8813	12432437-1
95	2530-01-568-4462	5717285	200	2510-01-554-4726	12506989
96	5310-01-198-7585	12339501	201	2590-01-199-5423	12338360
97	2640-01-419-6205	570K0297	202	4720-01-212-3531	12338957
98	5331-01-417-1043	12460338	203	4720-01-443-3481	12460512
99	5340-01-186-7658	12338888	204	2530-01-174-4174	5579061
100	3120-01-186-5527	12338270	205	3020-01-476-2701	6009452
101	3020-01-166-5647	01-166-5647	206	3110-00-100-5920	5568227
102	4810-01-187-4925	01-187-4925	207	2530-01-554-8336	12480554-2
103	2910-00-828-7176	11602721	208	6620-00-993-5546	MS24539-1
104	2910-00-404-3054	00-404-3054	209	0-432-191-738
105	2910-01-218-5155	01-218-5155	210	6620-00-814-4770	MS24538-1

1. Who are we?SAMARLANNY AUTO PARTS Co.. Ltd is is one of the biggest professional non-civilian vehicle and trucks parts manufacturers &suppliers in China. We wholesale mainly to the Non-civil organization of various countries and Non-civil organization supply contractors. but also active in the commercial of end users market from all over the world.2. How can we guarantee quality?Our factory has a well organized system to control quality according to ISO9000 requirement. 100% testing process will be made before any order delivered. After that. we offer 12 months warranty for all our products.?there is no worries to get replaced or refund at any special situation you met.3. Why should you buy from us?1.All parts OEM quality and eligible in US!2.Fast Shipment! Many of parts are available in stock!3.Full range of parts! We are continuously adding some parts to our inventory for sale!4.The most competitive price!
